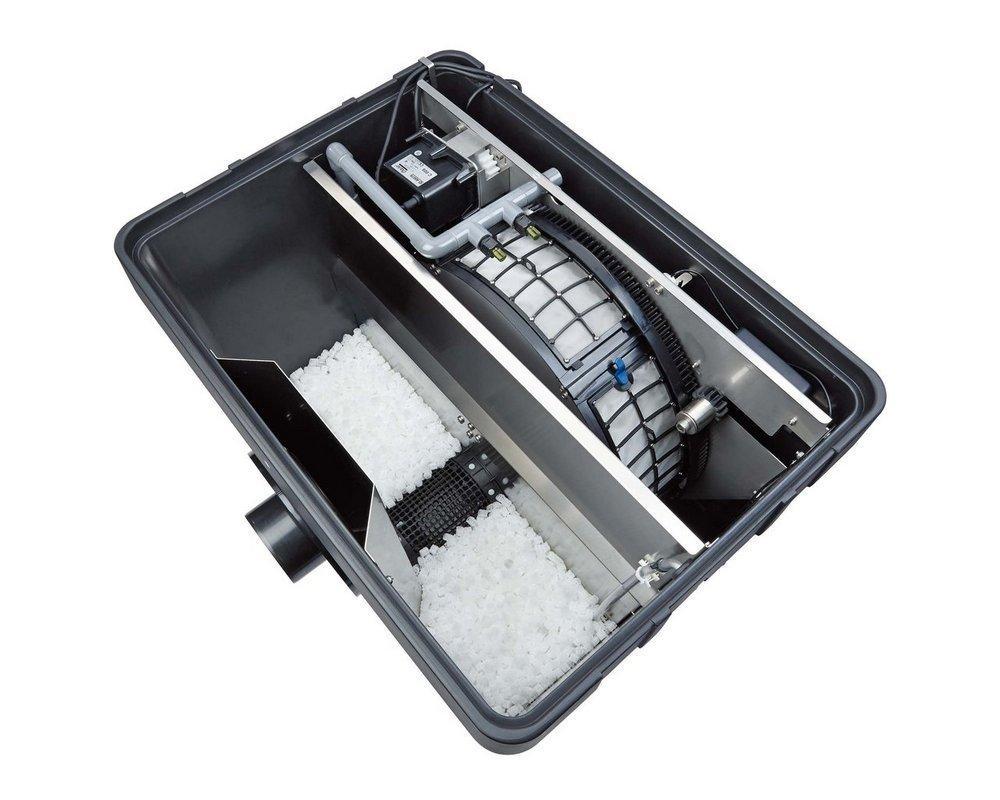

OASE Proficlear Premium Compact-M (Gravity)

£3,247.27

SKU SKSFS1981 Category

Description

?

  • Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
  • Inexpensive alternative for smaller ponds, particularly koi ponds
  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
  • Available in the pump-fed principle and in the gravity-fed principle
  • Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
  • With the Moving Bed System for optimal water movement and water cleaning
  • High separating capacity through deep-bed filtration of up to 60 microns
  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
  • Innovative and reliable product ?made in Germany? (except pressure pump)
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
  • Particularly quiet operation thanks to extensive noise insulation
  • Individually removable sieve elements (no tools required) and free-wheel function
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
  • Minimal install height for full flexibility with gravity-fed systems

Technical Data

Dimensions (L x W x H) mm 885 x 685 x 820
Rated voltage 230 V / 50 Hz
Power consumption W 5
Power consumption, cleaning W 870
Cable length m 5.00 + 5.00
Net weight kg 81.00
Limited Warranty Years 2 + 1
Biological filter surface m? 38.2
Biological filter surface protected m? 32.2
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction ?m 80
Number of nozzles/rinse quantity 2 x 3.5 l/min
Scavenging pump 4 bar
Automatic rinsing system manually, Sensor, Time interval
Number of sieve elements Units 6
Filter intake surface cm? 1135
Material GRP Duroplast/stainless steel
Number of inlets Units 2
Inlet connections DN 110
Number of outlets Units 1
Outlet connections DN 110
Sludge discharge connections DN 75, DN 110
Flush trough connection DN 110
Connection to AquaOxy 2000, Bitron Gravity, ProfiClear pump chamber Compact
Min. flow rate l/h 7500
Max. flow rate l/h 16500
Installation height above water level cm 10.5
Type of use Gravity fed system
Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
