Description

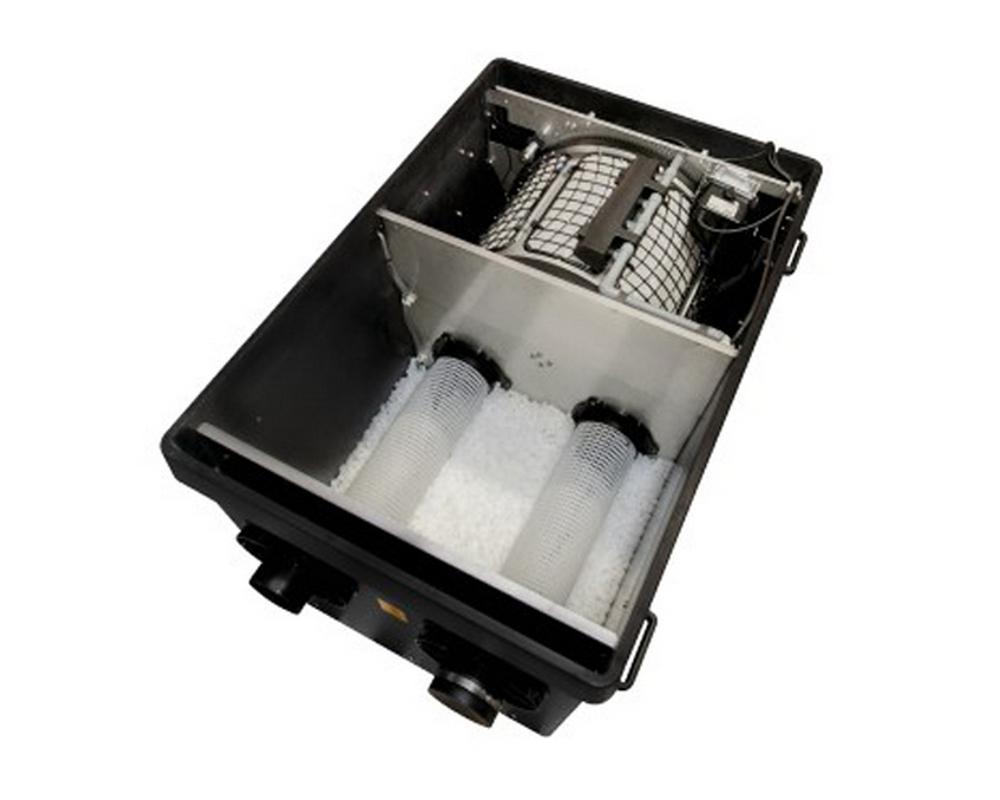

This new compact drum filter of the ProfiClear Premium series is the inexpensive alternative for small to medium-sized bodies of water.?The compact modular filter system is particularly ideal for koi ponds up to 35 m?.?Leading koi experts were consulted in developing the range.?In the gravitation principle, the maximum water flow through the filter is 25,000 liters per hour.?With this completely self-cleaning drum filter unit, the moving bed system ensures optimal water movement and cleaning.?Professional Hel-X bacteria cause the effective breakdown of nutrients and pollutants in the water.?A depth filtration of up to 60 microns and a new Hel-X 13 filter medium with a significantly larger surface ensure the high separation efficiency.
- Suitable for ponds up to 140.0?m?
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
Technical Data?
| Dimensions (L x W x H) | mm | 1370 x 891 x 815 |
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1050 |
| Cable length | m | 5.00 + 5.00 |
| Net weight | kg | 131.50 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface | m? | 57.3 |
| Biological filter surface protected | m? | 48.4 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | ?m | 60 |
| Number of nozzles/rinse quantity | 4 x 2.5 l / min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 3 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | AquaOxy 2000, Bitron Gravity, ProfiClear Moving Bed Modul | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 25000 |
| Installation height above water level | cm | 12.5 |
| Type of use | Gravity fed system | |
| Other | Aeration pre-installed incl. 60l Hel-X 13 Biomedia |
