Description

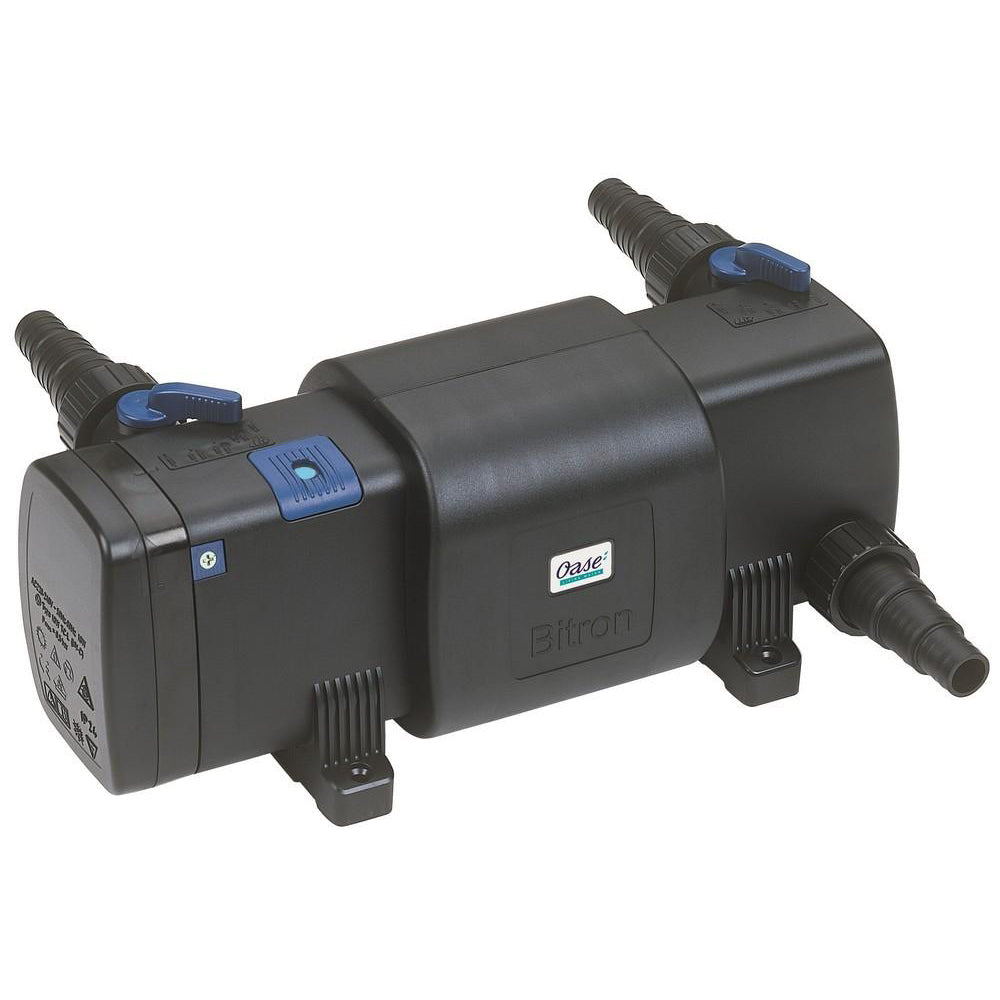

The OASE Bitron C 24 W UVC clarifier removes floating algae and reduces harmful bacteria for healthy and clear water.?An automatic cleaning system ensures fully effective UVC radiation at all times.?A control window provides additional functional reliability.?Eye protection guaranteed by 100%, VDE-tested safety.?With a power consumption of only 24 watts, 3,500 l / h can flow past the UVC tube without a bypass.?The flow can be individually adjusted and regulated.?The OASE Bitron C 24 W UVC clarifier is available complete with a universal stepped hose nozzle from 1 “(25 mm) to 1 ?” (38 mm).?The cable is 5 m long.?A flow nozzle optimizes the flow to the cleaning rotor.?The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 18000/36000.
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100% protection against eye damage
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl.?high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 25.0 m?
Technical Data?
| Dimensions (L x W x H) | mm | 440 x 180 x 198 |
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W. | 24 |
| Power cable length | m | 5.00 |
| Net weight | kg | 3.50 |
| Limited warranty | Years | 2 |
| UVC power | W. | 24 |
| Temperature display | No | |
| UVC bypass | manually | |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 25/32/38 |
| Inlet connections | 1 “, 1 ?”, 1 ? “ | |
| Number of outlets | Units | 2 |
| Connections, outlet | mm | 25/32/38 |
| Outlet connections | 1 “, 1 ?”, 1 ? “ | |
| Min. Flow rate | l / h | 4000 |
| Max. Flow rate | l / h | 15000 |
| Max. Operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m? | 25.0 |
| Suitable for ponds with fish stock | m? | 12.5 |
| Suitable for ponds with koi | m? | 6.5 |
| Connection to | BioSmart 18000/36000 |
