Description

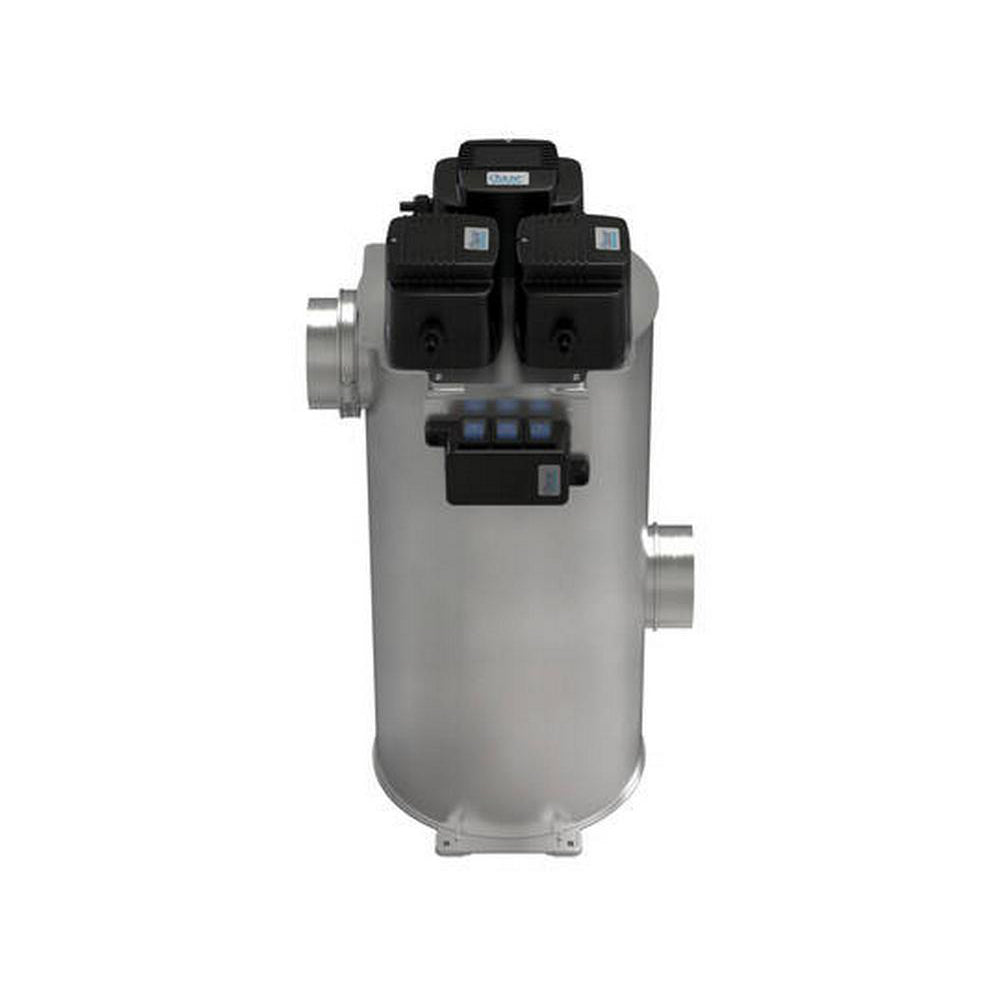

The highly efficient UVC clarifiers in the Bitron Premium range are suitable for ponds up to 280 m? and provide extremely powerful removal of algae and pathogenic bacteria – in the same way as an immersion UVC. They offer 100% protection against eye damage, are particularly energy efficient thanks to an electronic ballast and are exceptionally effective in disinfection thanks to the long residence time of the water in the Bitron. The flow-optimized reactor design ensures direct and almost loss-free UV radiation.
- CLEARS EVERYTHING UP: Extremely effective elimination of algae and pathogenic bacteria; works in the same way as an immersion UVC
- WELL PROTECTED: 100% protection against eye damage
- HIGHLY EFFECTIVE: Exceptionally effective sterilisation thanks to the extra-long retention time of the water in the Bitron
- PERFECTED: The flow-optimised reactor design ensures direct and almost loss-free UV radiation
- GUARANTEED: Clear water guarantee when used in conjunction with OASE ProfiClear filters
- YOU CHOOSE: Horizontal or vertical installation
- FLEXIBLE: Can be connected either upstream or downstream of the ProfiClear filter system ?? also applies to other gravity-fed applications
- EXPANDABLE: In the event of pond enlargements or increase in fish stock, expansion with additional Bitron Premium UVC devices is no problem
- CHECK: Visual function check
- SIMPLE: Particularly straightforward installation using stainless steel fasteners
- YOU CHOOSE: Depending on the requirements, the lamps of the Bitron Premium 120 W and 180 W can be switched on individually
Technical data
| Dimensions (L x W x H) | mm | 700 x 417 x 340 |
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | IN | 180 |
| Power cable length | m | 7.00 |
| Net weight | kg | 17.40 |
| Limited Warranty | Years | 2 |
| UVC power | IN | 180 |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 1 |
| Outlet connections | DN 110 | |
| Max. flow rate | l/h | 100000 |
| Max. operating pressure | bar | 0.6 |
| Rec. flow rate (gravity-fed) | l/h | 50000 |
| Suitable for ponds up to max. | m?3 | 280.0 |
| Suitable for ponds with fish stock | m?3 | 160.0 |
| Suitable for ponds with koi | m?3 | 100.0 |
| Material | Plastic / stainless steel | |
| Connection to | AquaMax, ProfiClear | |
| Type of use | Gravity fed system, Pump fed system |
